| Menşe yeri: | Hebei Çin |
|---|---|
| Marka adı: | Pangolin |
| Fiyat: | Negotiable |
| Ambalaj bilgileri: | Müşteri ihtiyaçlarına göre |
| Teslim süresi: | 5-15 iş günü |
| Ödeme koşulları: | T/T |
| modeli: | CSJ-FN-60C | Kapasite (m3/saat): | 60 |
|---|---|---|---|
| Bulamaç pompası Gücü (Kw): | 11 | Bulamaç pompası Basıncı (MPa): | 1.0~2.0 |
| Şeyl çalkalayıcı Gücü (Kw): | 2 | Şeyl çalkalayıcı Titreşim kuvveti (KN): | 40 |
| Ekran boyutu (mm): | 1700x700 | Koni Numarası: | 6 |
| Ayırma boyutu (μm): | 10-30 | Toplam Güç (KW): | 13 |
| Sistem Maks.Boyut(mm): | 2000X1600X2250 | Sistem ağırlığı (Kg): | 1900 |
| Vurgulamak: | Mud Recycling System HDD,Double Amplitude Mud Recycling System,Mud Recycling Drilling Fluid System |
||
Introduction
This shale shaker is our latest developed solid control equipment used in oilfield drilling and it’s the advanced drilling fluid shale shaker,by absorbing the design experience and the advanced technology at home and abroad and adopting imported vibration motor. We can design duplex or triple shale shaker acoording to your requirements and can also supply relevant connectors and manifolds.Meanwhile,it can also be combined with mud cleaner as underset shale shaker. The shale shaker has the features of strong vibration,high migration speed, high permeation and large treatment capacity.
Mud cleaner is widely used in trenchless HDD, tunneling construction, city bored piling, oil & gas drilling, Drilling Waste Management, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, Water Drilling etc.
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

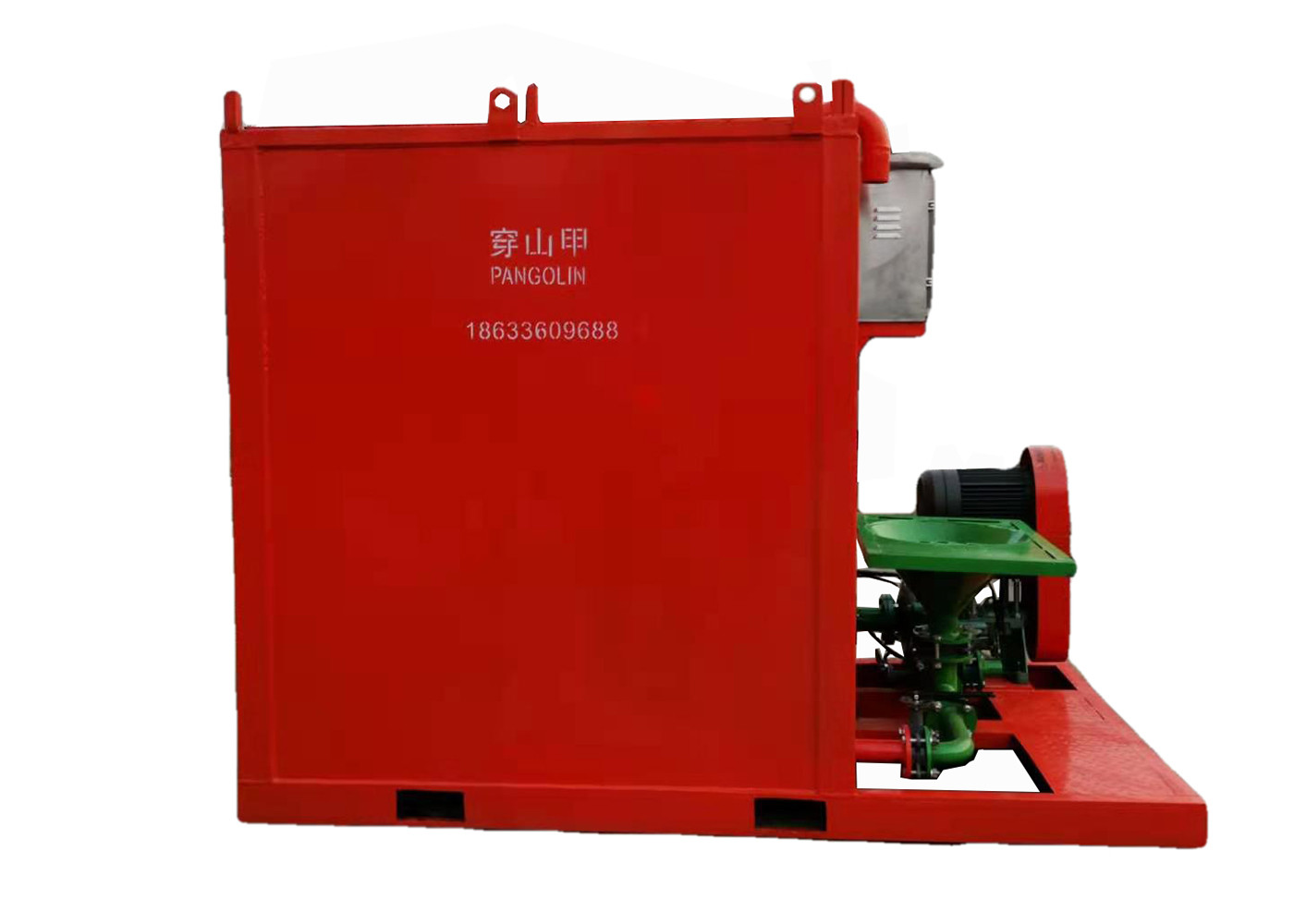

Pic Show
